Mobile POS
MT-5310W
MT Series

MT-5310W

The MT-5310W is a mobile POS specifically designed for both the retail and hospitality businesses. It is a 10.1" tablet supporting MSR/RFID attachment, pistol grip with built-in 2D barcode scanner, 2nd removable battery and an optional dock station to transform the device into a full-fledged, stationary POS.

Hybrid Solution

The MT-5310W is proven to provide businesses with the mobility of a tablet and the functionality of a fixed POS terminal.

Extra Protection

Hand strap provides extra protection and eases the user’s fatigue during the hours of operation.

Get Even More with A Dock Station

The optional printer dock station has a full array of connectivity ports, allowing the device to perform as an all-in-one POS.

Ergonomic Design

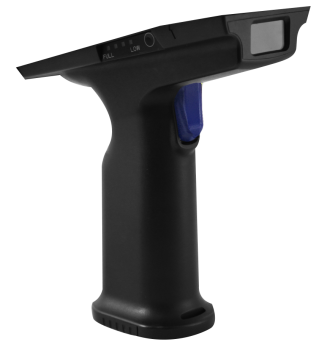

Ergonomically designed pistol grip shaped handle PG-500 for easy carrying the tablet along with an additional battery and optional built-in barcode scanner.

Extended Operation

In addition to the charging dock station, both attachments PG-500 and TA-600 house a removable battery to vastly extend the overall operating time.

MT-5310W Specification (Tablet Only)

  • Processor: Intel Kaby Lake Core m3-7y30
  • OS Support: Windows 10 IoT 64 bits
  • LCD: 1920 x 1200, 10.1" TFT LCD with LED backlight
  • Resolution: N/A
  • Brightness: 400 nits
  • Touch Input: True-flat PCAP touch with multi-touch support
  • System Memory: LPDDR3 4 GB, upgradable to 8 GB
  • Storage Device: 64 GB SSD
  • WiFi: Dual band 2.4 GHz / 5 GHz WiFi (802.11ac) + BT; Optional 4G/LTE
  • Audio: N/A
  • OTG USB Port: N/A
  • Standard USB port: N/A
  • LAN port: N/A
  • CR Port: N/A
  • Built-in Printer: N/A
  • Camera: 5MP AF rear facing camera
  • Speaker/Audio + Mic: Yes/Yes
  • Sensor: G sensor, light sensor
  • I/O: microSD, nano-SIM, Power Jack, micro-USB
  • Button: Power
  • Battery: 7.6V/3570 mAh, 27.14 Wh

Physical Dimension (Tablet Only)

  • Dimension (W x D x H in mm): 260.7 x 16.8 x 175
  • Weight (N. W. in g): 980

Environmental

  • Operation Condition: 0°C - 40°C, 20%RH - 90%RH
  • Storage Condition: -20°C - 70°C, 10%RH - 90%RH

Built-in Options

  • Smart Card Reader: ID Tech MiniSmart II, EMV level 2 certified (cannot co-exist with 4G/LTE module)
  • 3G Communication: N/A
  • 4G / LTE Communication: Selected bands for selected regions (cannot coexist with EMV Chip Card Reader)
  • NFC: N/A
  • Customer Display: N/A
  • Camera: N/A
  • Scanner: N/A

Attachment Options

  • MSR (TA-220 / TA-300): 3T MSR reader
  • RFID (TA-220): Support MIFARE Classic 1K & MIFARE Ultralight
  • Fingerprint sensor (TA-300): Fingerprint Sensor (Active Capacitive technology)
  • Pistol Grip (PG-201E): N/A
  • Pistol Grip (PG-500): Swappable battery module (7.2V / 3235 mAh); Optional 2D barcode scanner
  • Scanner: 2D barcode scanner embedded in Pistol Grip
  • Shoulder Strap + 2nd Battery Option (TA-500): N/A
  • Shoulder Strap + 2nd Battery Option (TA-600): Swappable battery module (7.2 V / 3235 mAh)
  • EMV Chip Card Reader: N/A

Standalone Options

  • Removal Battery Charging Rack (CS-100): N/A
  • Tablet Charging Rack (CS-210 / CS-220): Single charging station for MT Series tablet
  • Quad Tablet Charging Rack (CS-200): N/A
  • Hand Strap: Hand Strap is available for added security
  • Protection Cover (MC-408): N/A
