Sleek Look

Slimmer than ever! Every curve and detail of the XT-8315/ XT-8315E is carefully thought out to make itself one of the most visually desirable terminals in the market.

Powerful and Reliable

With Intel CPUs up to Core i7, XT-8315/ XT-8315E can deliver powerful performance to run today's demanding POS applications.

GEN8E Base

Optional GEN8E Base (U.S. Patent 9004436) that integrates internal power adaptor and PoweredUSB port into the base stand, which keeps counters clutter-free.

Multi-Position Folding Base

The patented foldable base of the XT-8315/ XT-8315E enables users to adjust the screen to a height and angle of their choice, providing unparalleled flexibility. (U.S. Patent 9004436)

Fanless Design

Solve the fan maintenance issue and provide silent mode operation, which is ideally suited for high-end boutique stores or hospital environments.

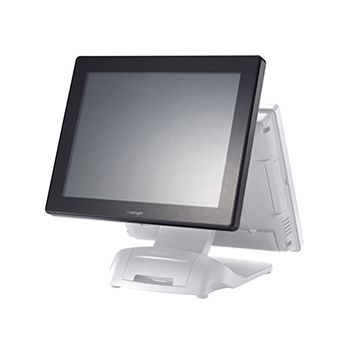

JIVA XT-8315 Specification (Tablet Only)

Processor: Intel Tiger Lake Core i3-1115G4E, up to 3.90 GHz, 6M Cache;
Intel Tiger Lake Core i5-1145G7E, up to 4.10 GHz, 8M Cache;
Intel Tiger Lake Core i7-1185G7E, up to 4.40 GHz, 12M Cache
OS Support: Windows 10 IoT 64 bit
Windows 11 IoT GAC
System Memory: DDR4 SO-DIMM x 2, max. 64 GB
Storage Device: M.2 connector [Support both SATAIII signal and PCIe signal] x 2
RAID Function: Yes
Intel vPro Support: Yes, with Core i5 & i7 CPU
TPM Support: Yes , TPM 2.0
Power Supply: 12V/60W

Display & Touch

LCD: 15" TFT LCD
Resolution: 1024 x 768
Touch: True-flat PC. P touch with multi-touch support (IP65 on front panel)

I/O Expansion

Serial Port: 5, RJ50 x 3 + 2 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to 3 (all converter cables are optional)
Parallel Port: 1, via optional conversion cable through service window
Standard USB Port: 6, USB 3.0 x 4 + USB 2.0 x 2
PoweredUSB Port: Optional 24V x 1 and 12V x 3 via GEN8E Base
OTG USB: N/A
LAN Port: 10/100/1000 Mb x 2
Display Port: VGA x 1, 12V support for Posiflex monitors; HDMI x 1
CR Port: 1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port: 1, via optional conversion cable through service windo
UPS Port: Yes, battery optional
Audio: Internal 2W speaker x 1 + Line-out/mic-in combo jack
Expansion Slot: M.2 slot x 1

Physical Dimension (Tablet Only)

Dimension (W x D x H in mm): 372 x 252.7 x 320
Weight (N. W. in g): 6

Environmental

Operation Condition: 0°C - 40°C, 20%RH - 90%RH
Storage Condition: -20°C - 70°C, 10%RH - 90%RH

Built-in Options

WiFi: M.2 WiFi/BT module
Camera: N/A
MSR: N/A
AG Glass: N/A

Attachment Options

POS Monitor: Non-touch TFT LCD: 7"/9.7"/12.1"/14"/15";
PCAP touch TFT LCD: 9.7"/14"/15";
Resistive touch TFT LCD: 15"
Line Display: 2 x 20 rear-mount VFD/LCD customer line display;
7" color LCD graphical customer line display
External UPS Pack For RT Series: N/A
Attachment: MSR; MSR; iButton; Rotatable 2D Scanner; RFID; Fingerprint Sensor; Keypad
